Aero Precision M4E1 Complete

Aero Precision M4E1 Complete
Category
Carbine
Barrel
406 mm
Weight, empty
2.83 kg
Introduced
2015

About

What it is, and why it matters

Copy a link to this section

The Aero Precision M4E1 Complete is a mid-tier AR-15 carbine built around Aero's innovative M4E1 enhanced receiver set, introduced in 2015. The rifle features a 16-inch 4150 CrMoV steel barrel with QPQ (Quench-Polish-Quench) coating, providing superior corrosion and wear resistance. The 1:7 twist rate stabilizes a wide range of bullet weights from 55 to 77 grains. The M4E1 enhanced upper receiver incorporates a unique threaded barrel nut system that eliminates timing issues and simplifies installation of the enhanced handguard. The one-piece free-float handguard features integrated anti-rotation tabs, M-LOK attachment points, and a continuous Picatinny top rail. Manufactured from 7075-T6 aluminum forgings with Type III hard anodizing, the receivers are precisely machined to M4E1 specifications with M4 feed ramps. The mid-length gas system provides optimal dwell time with the 16-inch barrel, resulting in softer recoil and reduced wear. The barrel undergoes high-pressure testing and magnetic particle inspection to ensure reliability. Quick-disconnect sling mounts are positioned at 3, 6, and 9 o'clock on the handguard.

Aero Precision started as an aerospace parts manufacturer in 1994 before expanding into firearms components. Their entry into complete rifles with the M4E1 line disrupted the AR-15 market by offering enhanced features at accessible price points. The M4E1 threaded receiver design became so popular that other manufacturers developed similar systems. Aero's rifles have earned a reputation for 'punching above their weight class' - delivering performance and features comparable to rifles costing significantly more. The M4E1 Complete has become a go-to recommendation in online firearms communities for shooters seeking a quality AR-15 without premium boutique pricing. The company's focus on CNC precision and in-house manufacturing quality control has made Aero one of the most trusted names in the AR-15 market. Many custom builders use Aero M4E1 receivers as the foundation for high-end builds, testament to the quality of their engineering and manufacturing.

Aero Precision revolutionized the AR-15 market with the M4E1 receiver set by offering enhanced features at competitive prices. The threaded upper receiver design was a significant innovation, allowing the barrel nut to be installed with simple Allen wrenches rather than requiring an armorer's wrench and timing shims. This system also provides improved upper-to-handguard alignment and eliminates the common problem of loose handguards. The M4E1 enhanced handguard uses a proprietary BAR (Barrel Attachment Rail) system with anti-rotation tabs that lock into the upper receiver, creating an extremely rigid platform. Aero's QPQ coating process (also known as Ferritic Nitrocarburizing or Melonite) diffuses nitrogen into the steel surface, creating a wear-resistant layer that outperforms traditional chrome lining in corrosion resistance while maintaining better accuracy potential. The M4E1 Complete ships with an A2 flash hider, assembled bolt carrier group, charging handle, and is available with various handguard lengths (12, 15 inches). Aero Precision's commitment to in-house manufacturing at their Tacoma, Washington facility ensures consistent quality control. The rifles represent excellent value, offering features typically found on more expensive carbines.

Specification

Everything measured

Copy a link to this section

IdentityWhat it is, who built it and when.

Manufacturer
Aero Precision
Category
Carbine
Country
United States
Status
In production
Produced
2015

DimensionsAs issued, without a magazine or an optic.

Barrel
406 mm
Overall length
826 mm
Weight, empty
2.83 kg
Weight, loaded
3.40 kg

ActionHow it cycles, what trips it, and what feeds it.

Action
Gas operated direct impingement
Firing mechanism
Hammer fired
Trigger
Single stage
Trigger pull
27.0 N
Capacity
30
Magazine
Detachable box

MaterialsEach swatch is the material itself, not a colour chosen to stand for it.

Frame
Aluminum alloy
Barrel
Steel
Stock
Polymer
Finish
Hard anodized

BallisticsFrom the service cartridge, not a handload.

Muzzle velocity
914 m/s
Muzzle energy
1671 J
Effective range
500 m
Maximum range
3600 m

Trajectory

What the round does downrange

Solved from the muzzle figures and the bullet. The dashed rule is the effective range on the record, and the crosses are the steps the solver returned.

Copy a link to this section

0 m931 m/s

02505007501k541 m0501002003004005006008001000

Features

What it has

What the record lists as fitted, drawn from the catalogue.

Copy a link to this section
  • Mid length gas system
  • Free floating handguard

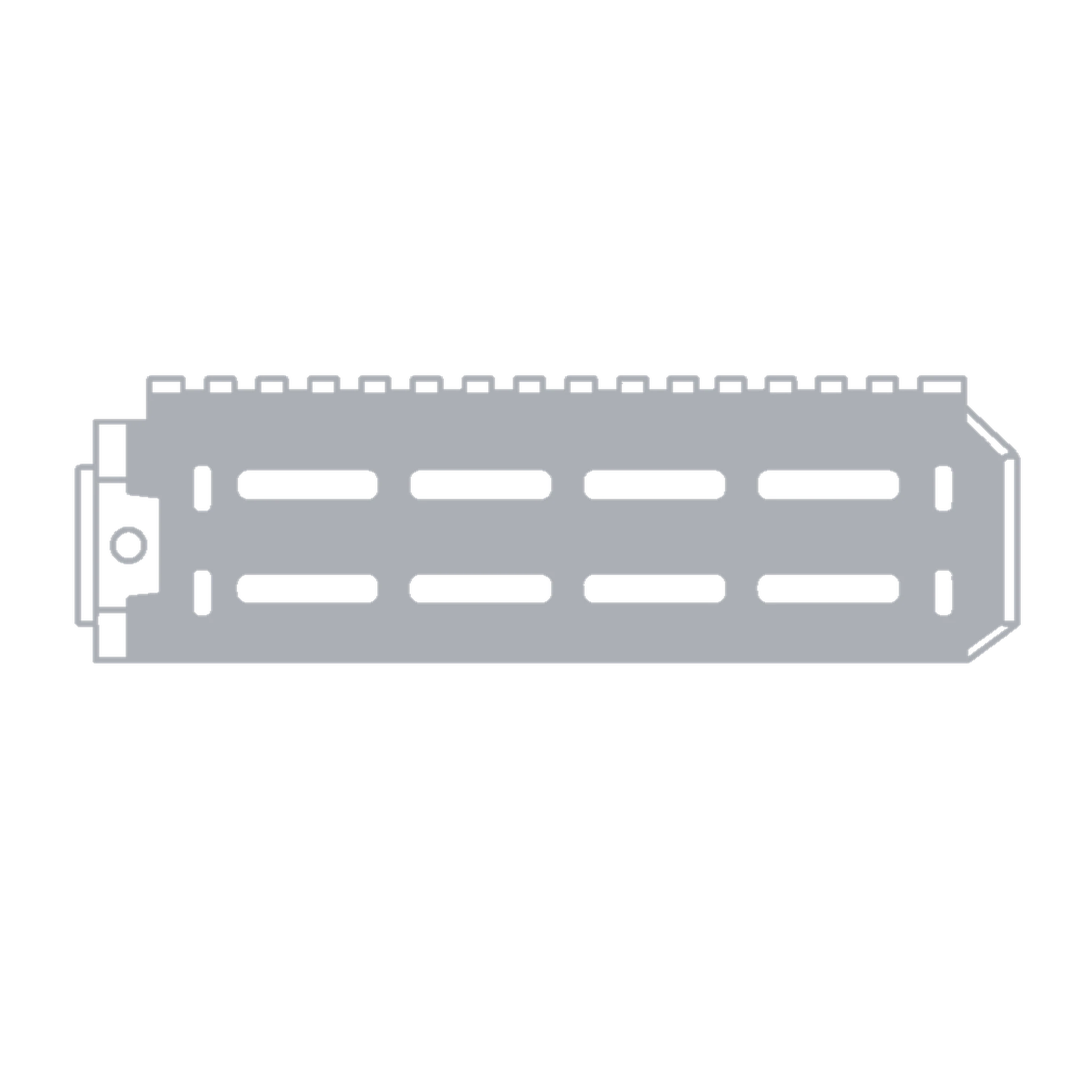

  • M lok rail
  • Rotating bolt
  • Flat top receiver
  • Picatinny rail
  • M4e1 threaded receiver

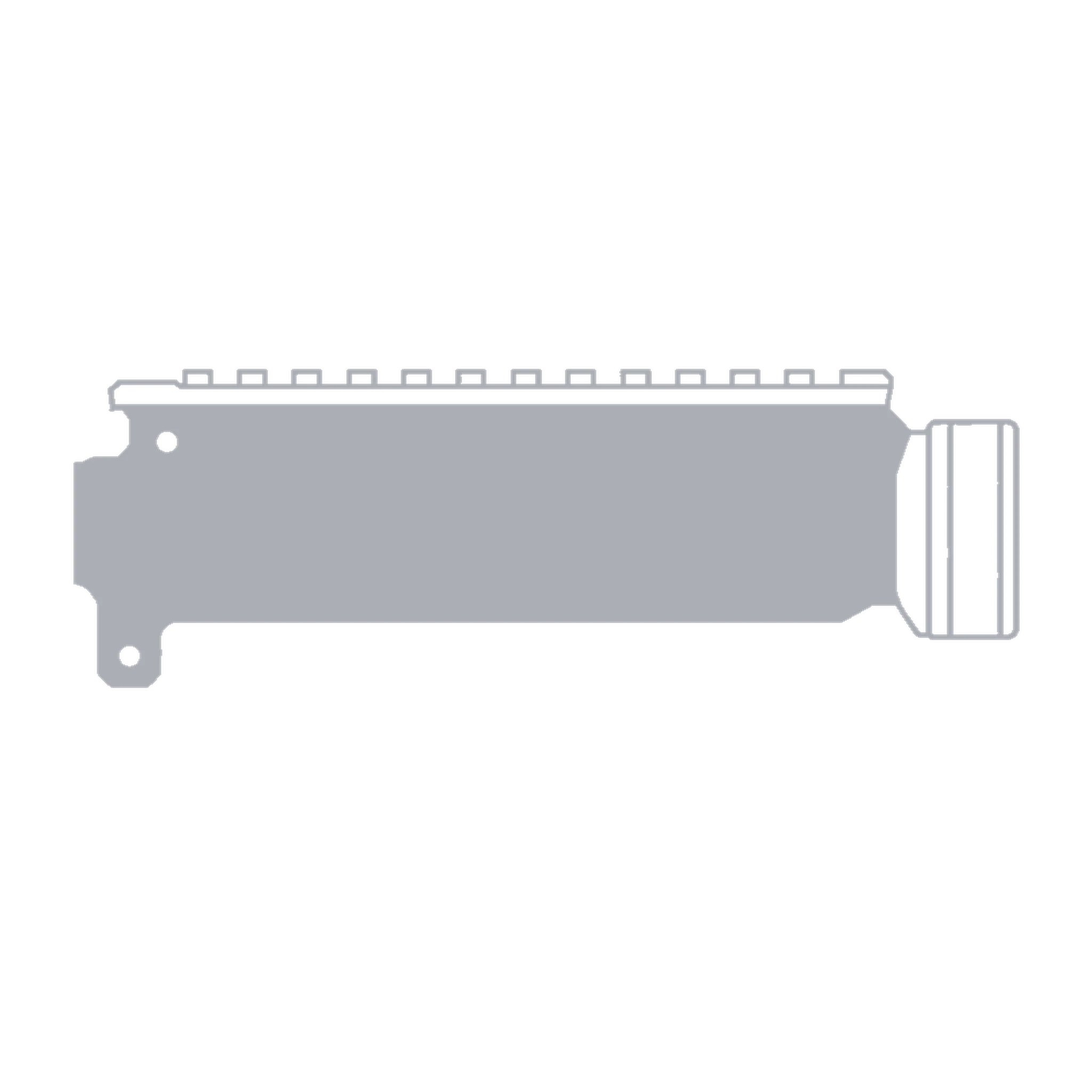

  • M4e1 enhanced upper
  • Qpq coating
  • M4 feed ramps
  • Hpt mpi tested
  • Forward assist
  • Dust cover
  • Enhanced handguard system
  • Anti rotation tabs

Standing

How it compares

Copy a link to this section

Each figure against the firearms of the same type and cartridge that record it, or of the same type where that cartridge has too few. Positions are read to the nearest tenth.

MeasurementThis firearmMedianPosition
Empty weightAmong 141 5.56x45mm NATO carbines2.83 kg2.95 kgLighter than about 70%
Overall lengthAmong 144 5.56x45mm NATO carbines826 mm838 mmShorter than about 60%
Barrel lengthAmong 150 5.56x45mm NATO carbines406 mm406 mmLonger than about 70%
Magazine capacityAmong 150 5.56x45mm NATO carbines3030Near the median

Answers

Questions about the Aero Precision M4E1 Complete

Copy a link to this section
How much does the Aero Precision M4E1 Complete weigh?

The Aero Precision M4E1 Complete weighs 2.83 kg (6.25 lb) empty and 3.40 kg (7.51 lb) loaded.

What caliber is the Aero Precision M4E1 Complete?

The Aero Precision M4E1 Complete is chambered in 5.56x45mm NATO.

How many rounds does the Aero Precision M4E1 Complete hold?

The Aero Precision M4E1 Complete holds 30 rounds, fed from a detachable box magazine.

How long is the Aero Precision M4E1 Complete?

The Aero Precision M4E1 Complete is 826 mm (32.5 in) long overall, with a 406 mm (16.0 in) barrel.

Who makes the Aero Precision M4E1 Complete?

The Aero Precision M4E1 Complete is made by Aero Precision (United States).

When was the Aero Precision M4E1 Complete introduced?

The Aero Precision M4E1 Complete was introduced in 2015.

How does the Aero Precision M4E1 Complete operate?

The Aero Precision M4E1 Complete uses a gas operated direct impingement action, and its firing mechanism is hammer fired.
