JS 05 (QBU-09)
- Category
- Sniper Rifle
- Barrel
- 1050 mm
- Weight, empty
- 13.50 kg
- Introduced
- 2005
About
What it is, and why it matters
The JS 05, also designated QBU-09 in PLA service, is a Chinese bolt-action anti-materiel rifle chambered in 12.7x108mm. Developed by Norinco as China's primary man-portable anti-materiel solution, the JS 05 features a bullpup layout that keeps its overall length manageable despite the massive 12.7mm cartridge. The rifle is designed to engage high-value targets including light armored vehicles, radar equipment, communications installations, and fortified positions at ranges up to 1500 meters, providing PLA infantry units with organic long-range destructive capability.
The JS 05 is China's answer to the Barrett M82, but where the Americans chose semi-automatic firepower, the Chinese opted for bolt-action precision in a compact bullpup package. The design philosophy reflects PLA doctrine that emphasizes first-round hit probability over volume of fire for the anti-materiel role.
The JS in the designation stands for Jianjishou (Sniper) in Chinese. The bullpup configuration reduces the overall length significantly, making the weapon more practical for motorized and mechanized infantry. The rifle features a substantial muzzle brake and internal recoil buffering system to manage the 12.7x108mm cartridge's punishing recoil. The bolt-action mechanism was chosen over semi-automatic for improved accuracy and reliability with the high-pressure cartridge. The JS 05 has been displayed at various Chinese defense exhibitions and is believed to be in widespread PLA service. Some sources also list a variant chambered in the domestic 12.7x108mm DJP-05 armor-piercing incendiary round optimized for anti-materiel work.
Specification
Everything measured
IdentityWhat it is, who built it and when.
- Manufacturer
- Norinco
- Category
- Sniper Rifle
- Country
- China
- Status
- In production
- Produced
- 2005
DimensionsAs issued, without a magazine or an optic.
- Barrel
- 1050 mm
- Overall length
- 1480 mm
- Weight, empty
- 13.50 kg
- Weight, loaded
- 14.20 kg
ActionHow it cycles, what trips it, and what feeds it.
- Action
- Bolt action
- Firing mechanism
- Striker fired
- Trigger
- Single stage
- Trigger pull
- 30.0 N
- Capacity
- 5
- Magazine
- Detachable box
MaterialsEach swatch is the material itself, not a colour chosen to stand for it.
- Frame
- Steel
- Barrel
- Steel
- Stock
- Polymer
- Finish
- Matte black
BallisticsFrom the service cartridge, not a handload.
- Muzzle velocity
- 820 m/s
- Muzzle energy
- 16230 J
- Effective range
- 1500 m
- Maximum range
- 6000 m
Trajectory
What the round does downrange
Solved from the muzzle figures and the bullet. The dashed rule is the effective range on the record, and the crosses are the steps the solver returned.
No load solved for this record yetThe flight path is computed from a cartridge and a bullet. This record has no ammunition filed against its chambering, so there is nothing to solve.
Features
What it has
What the record lists as fitted, drawn from the catalogue.

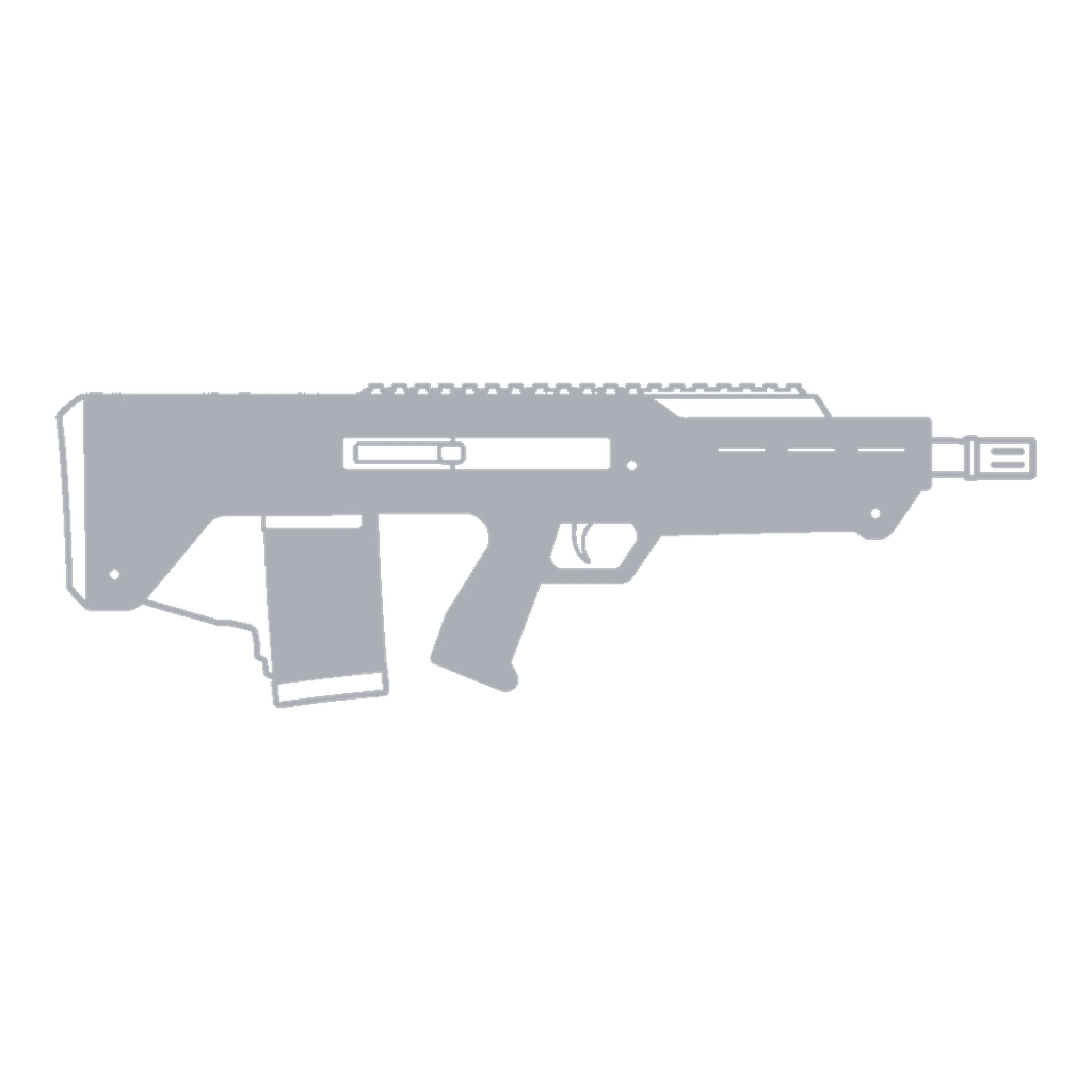

Bullpup layout
Muzzle brake
Integral bipod

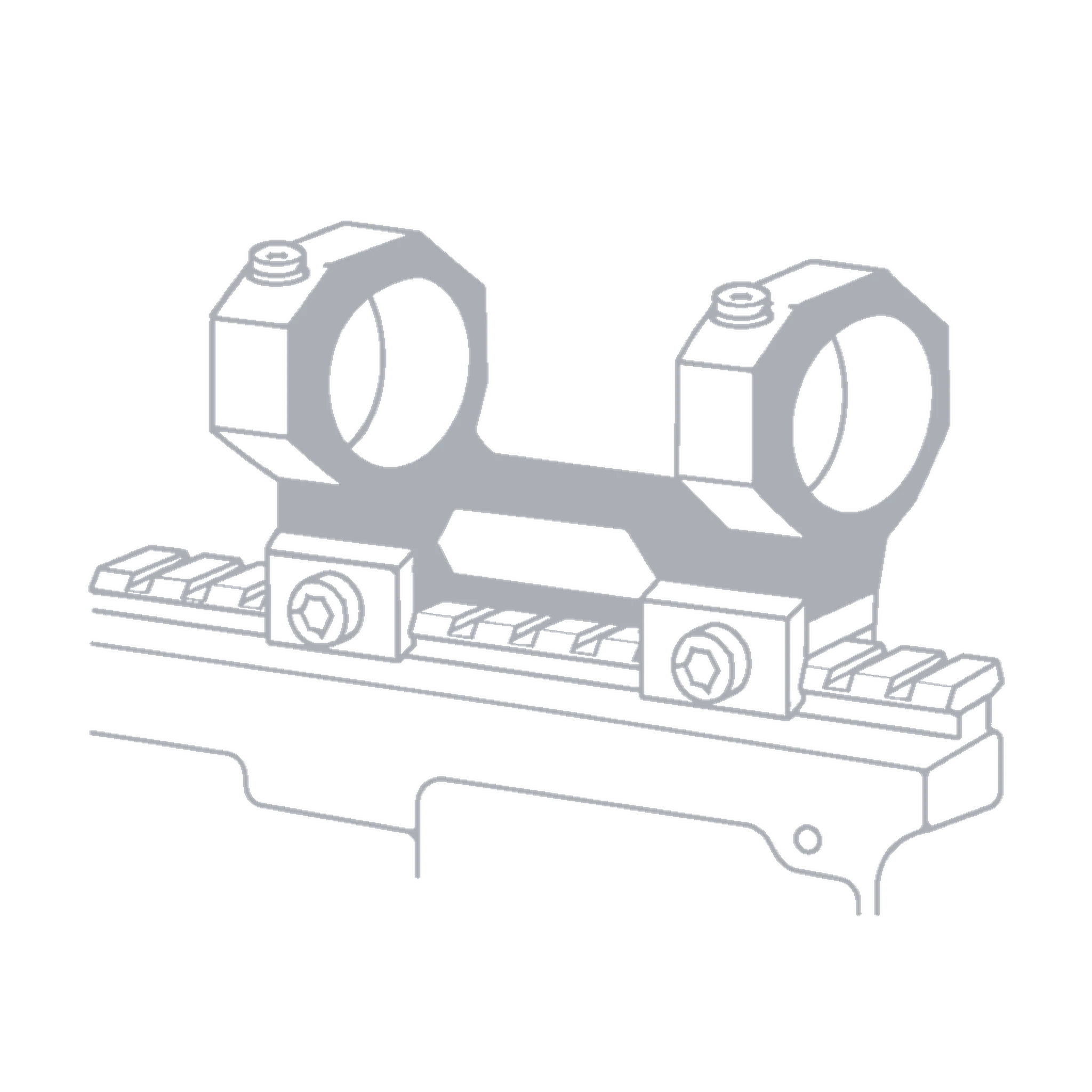

Optical sight mount

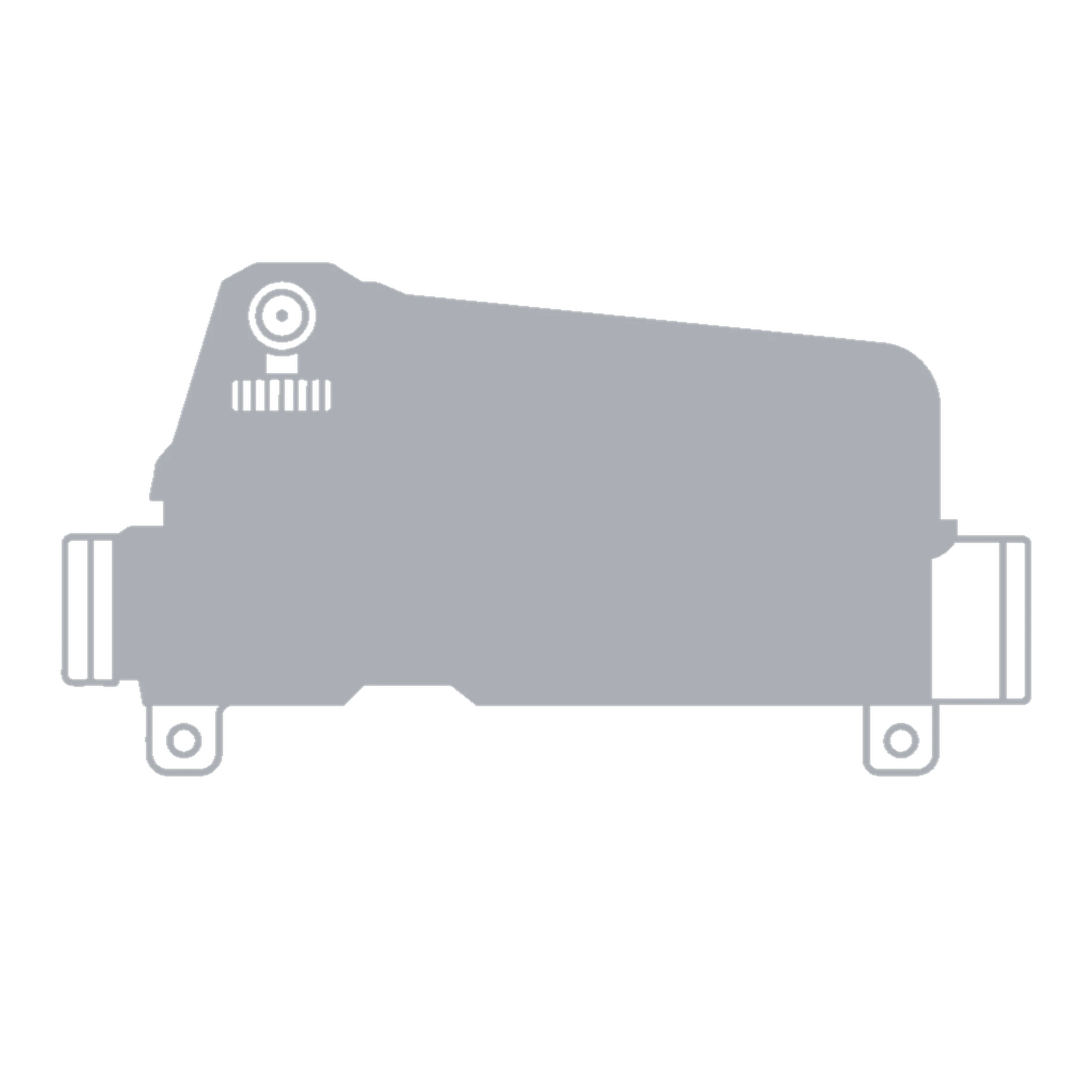

Carry handle
Recoil buffer- Anti materiel capability
Padded recoil pad
Standing
How it compares
Each figure against the firearms of the same type and cartridge that record it, or of the same type where that cartridge has too few. Positions are read to the nearest tenth.
| Measurement | This firearm | Median | Position |
|---|---|---|---|
| Empty weightAmong 430 sniper rifles | 13.50 kg | 5.40 kg | Heavier than about 90% |
| Overall lengthAmong 429 sniper rifles | 1480 mm | 1150 mm | Longer than about 90% |
| Barrel lengthAmong 434 sniper rifles | 1050 mm | 620 mm | Longer than about 90% |
| Magazine capacityAmong 434 sniper rifles | 5 | 6 | Holds fewer rounds than about 70% |
Answers
Questions about the JS 05 (QBU-09)
How much does the JS 05 (QBU-09) weigh?
The JS 05 (QBU-09) weighs 13.50 kg (29.76 lb) empty and 14.20 kg (31.31 lb) loaded.
What caliber is the JS 05 (QBU-09)?
The JS 05 (QBU-09) is chambered in 12.7x108mm.
How many rounds does the JS 05 (QBU-09) hold?
The JS 05 (QBU-09) holds 5 rounds, fed from a detachable box magazine.
How long is the JS 05 (QBU-09)?
The JS 05 (QBU-09) is 1480 mm (58.3 in) long overall, with a 1050 mm (41.3 in) barrel.
Who makes the JS 05 (QBU-09)?
The JS 05 (QBU-09) is made by Norinco (China).
When was the JS 05 (QBU-09) introduced?
The JS 05 (QBU-09) was introduced in 2005.
How does the JS 05 (QBU-09) operate?
The JS 05 (QBU-09) uses a bolt action, and its firing mechanism is striker fired.
