Mannlicher M1886
- Category
- Rifle
- Barrel
- 806 mm
- Weight, empty
- 4.52 kg
- Introduced
- 1886
About
What it is, and why it matters
The Mannlicher M1886 is an Austro-Hungarian straight-pull, en bloc clip-fed service rifle designed by Ferdinand Mannlicher and produced by the Steyr works (OEWG). Adopted in 1886 and chambered for the black-powder 11x58mmR Werndl cartridge, it was the first straight-pull bolt-action service rifle adopted by any nation, using a wedge-lock (Blocksystem) breech and a five-round integral box magazine fed by an en bloc clip. Most examples were later converted to the smaller 8x52mmR Mannlicher as the M1886/88.
The M1886 gave the Austro-Hungarian army the world's first straight-pull service rifle, letting a soldier cycle the bolt with a single back-and-forth push rather than the four-motion turn-bolt stroke of contemporaries like the Mauser 71.
The M1886 wedge-lock action was quickly superseded by the M1888 and the improved M1895 rotary-bolt straight-pull. Because most rifles were rebuilt as M1886/88 conversions, unaltered 11mm M1886 rifles are comparatively rare.
Specification
Everything measured
IdentityWhat it is, who built it and when.
- Manufacturer
- Steyr Arms
- Category
- Rifle
- Country
- Austria
- Status
- Discontinued
- Produced
- 1886 to 1918
DimensionsAs issued, without a magazine or an optic.
- Barrel
- 806 mm
- Overall length
- 1326 mm
- Weight, empty
- 4.52 kg
ActionHow it cycles, what trips it, and what feeds it.
- Action
- Straight pull
- Firing mechanism
- Striker fired
- Trigger
- Single stage
- Capacity
- 5
- Magazine
- En bloc clip
MaterialsEach swatch is the material itself, not a colour chosen to stand for it.
- Frame
- Steel
- Barrel
- Steel
- Stock
- Wood
- Finish
- Blued
BallisticsFrom the service cartridge, not a handload.
- Muzzle velocity
- 440 m/s
- Muzzle energy
- 2323 J
- Effective range
- 500 m
- Maximum range
- 1725 m
Trajectory
What the round does downrange
Solved from the muzzle figures and the bullet. The dashed rule is the effective range on the record, and the crosses are the steps the solver returned.
No load solved for this record yetThe flight path is computed from a cartridge and a bullet. This record has no ammunition filed against its chambering, so there is nothing to solve.
Features
What it has
What the record lists as fitted, drawn from the catalogue.
Wedge lock straight pull action
Integral box magazine

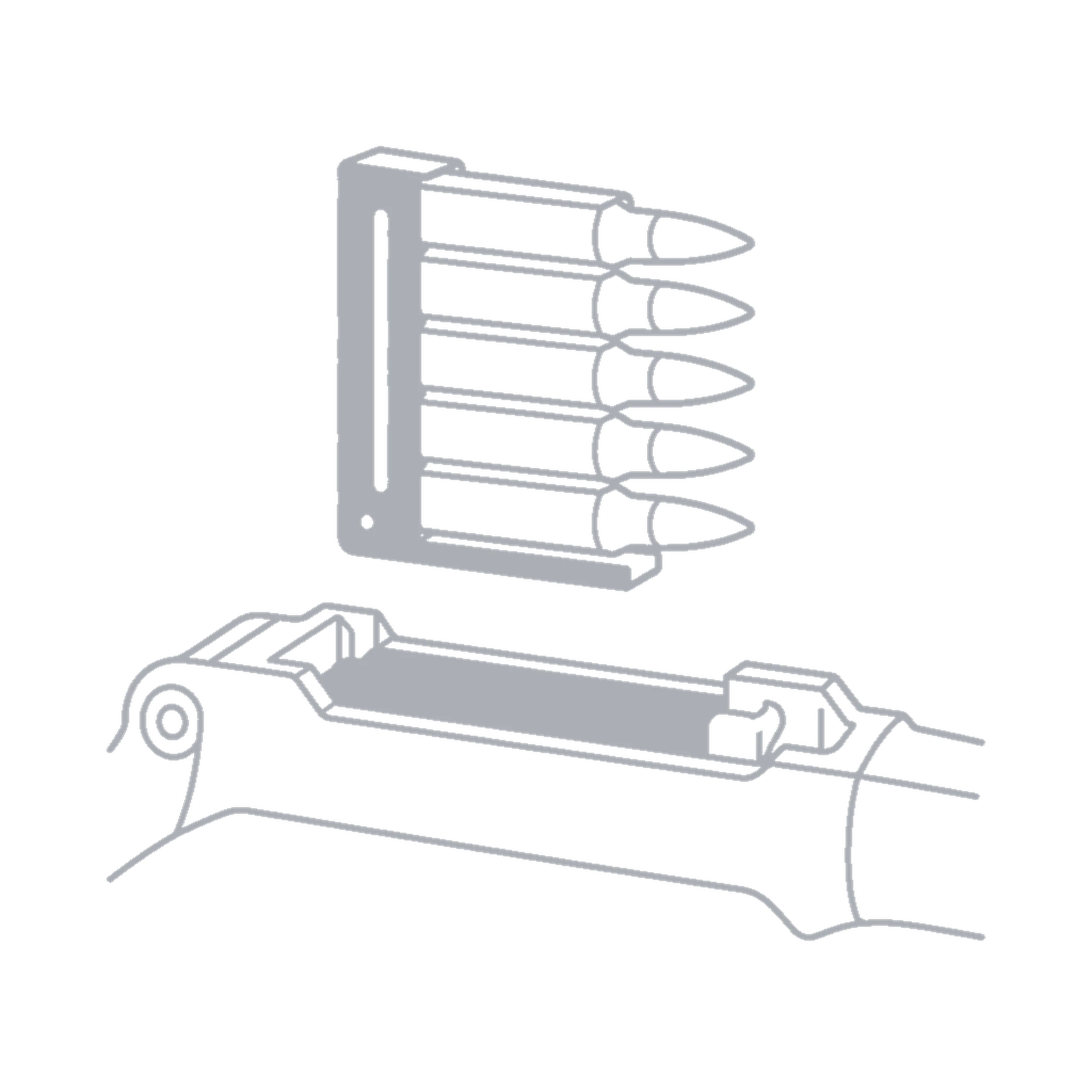

En bloc clip feed

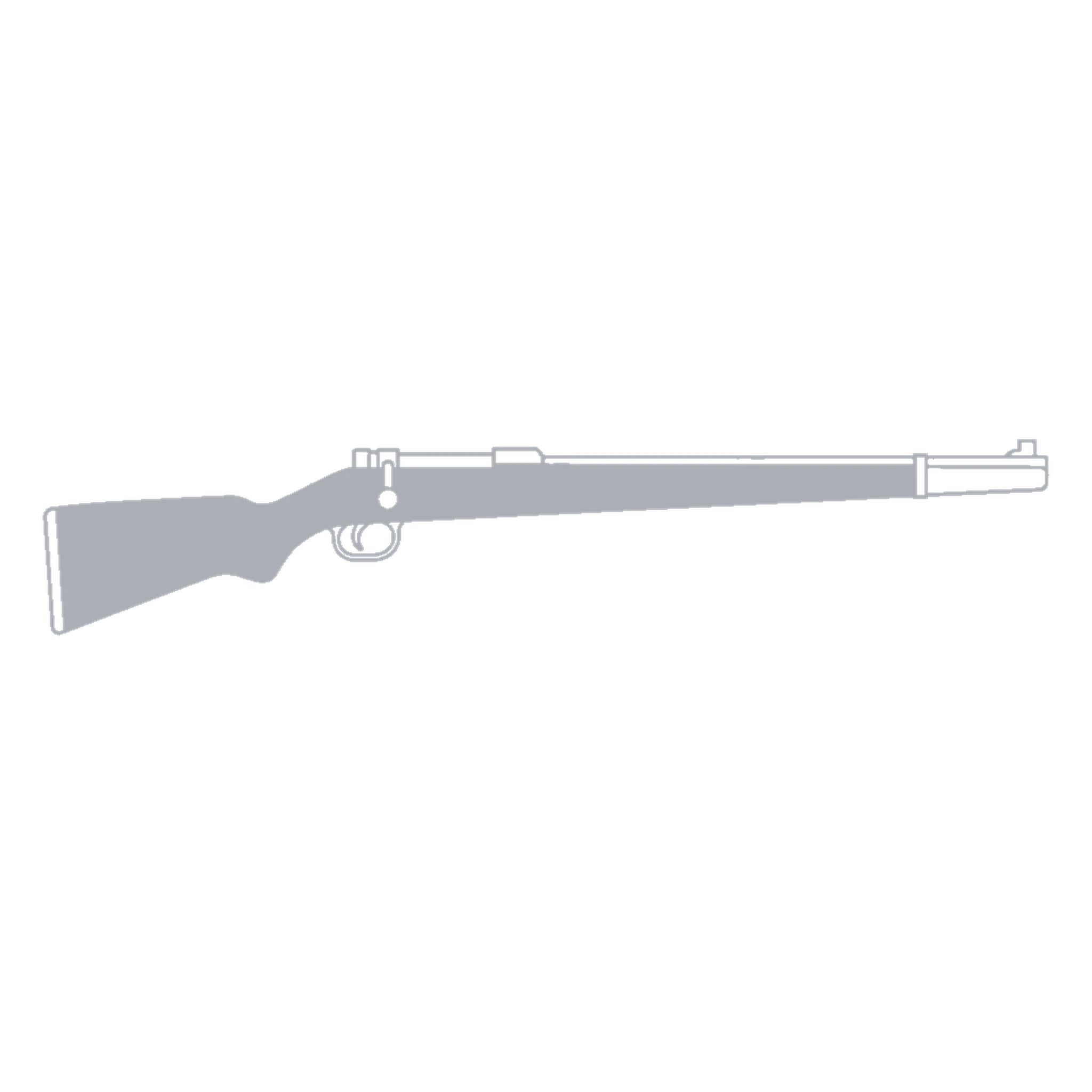

Full length wood stock
Bayonet lug

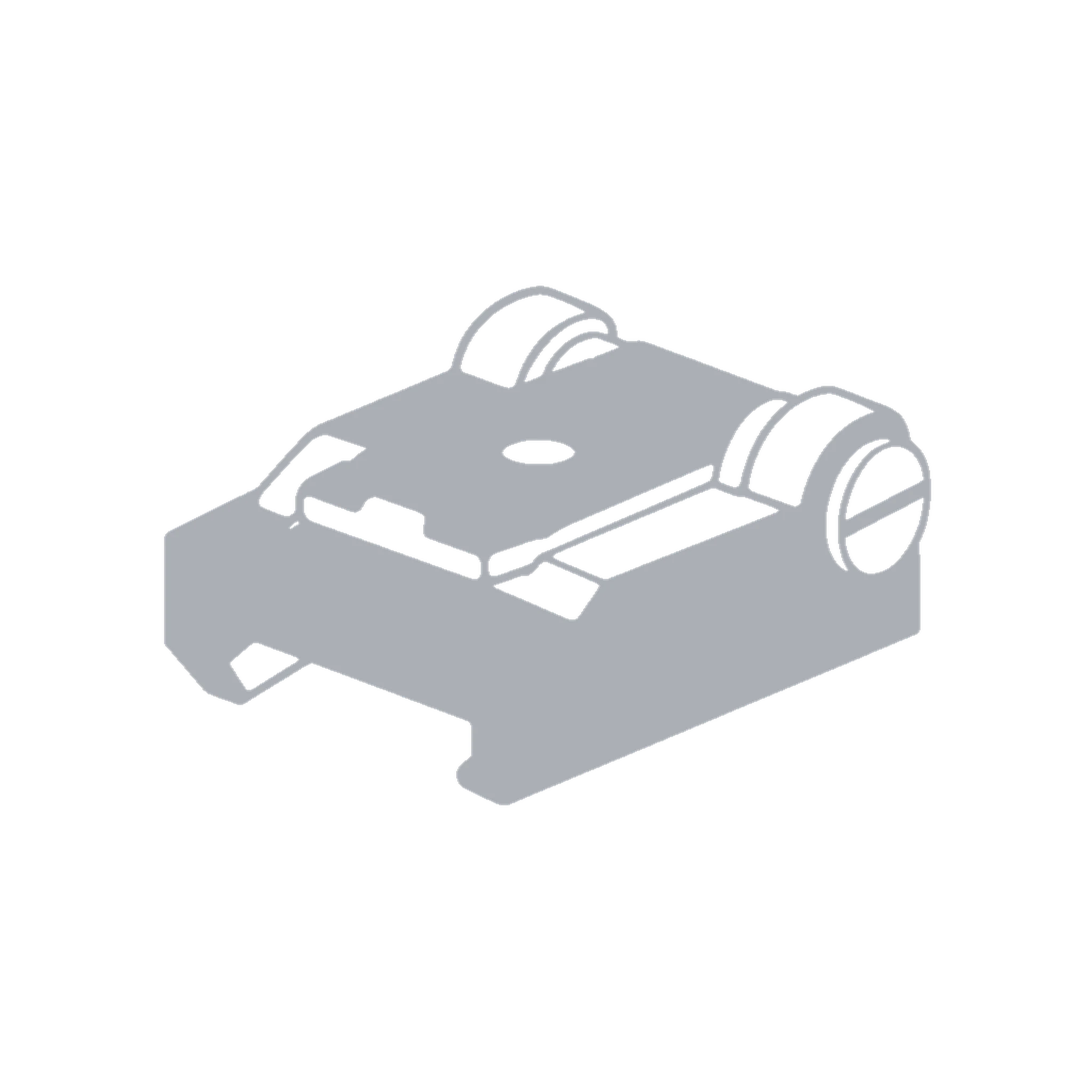

Leaf rear sight
Standing
How it compares
Each figure against the firearms of the same type and cartridge that record it, or of the same type where that cartridge has too few. Positions are read to the nearest tenth.
| Measurement | This firearm | Median | Position |
|---|---|---|---|
| Empty weightAmong 1,612 rifles | 4.52 kg | 3.50 kg | Heavier than about 90% |
| Overall lengthAmong 1,557 rifles | 1326 mm | 1080 mm | Longer than about 90% |
| Barrel lengthAmong 1,659 rifles | 806 mm | 584 mm | Longer than about 90% |
| Magazine capacityAmong 1,611 rifles | 5 | 5 | Holds more rounds than about 60% |
Answers
Questions about the Mannlicher M1886
How much does the Mannlicher M1886 weigh?
The Mannlicher M1886 weighs 4.52 kg (9.96 lb) empty.
What caliber is the Mannlicher M1886?
The Mannlicher M1886 is chambered in 11x58mmR Werndl.
How many rounds does the Mannlicher M1886 hold?
The Mannlicher M1886 holds 5 rounds, fed from an en bloc clip.
How long is the Mannlicher M1886?
The Mannlicher M1886 is 1326 mm (52.2 in) long overall, with a 806 mm (31.7 in) barrel.
Who makes the Mannlicher M1886?
The Mannlicher M1886 is made by Steyr Arms (Austria). It was designed by Ferdinand Mannlicher.
When was the Mannlicher M1886 introduced?
The Mannlicher M1886 was introduced in 1886 and discontinued in 1918.
How does the Mannlicher M1886 operate?
The Mannlicher M1886 uses a straight pull action, and its firing mechanism is striker fired.
Compatibility
Which parts fit this firearm
Studio
Every part that mounts on this, resolved
Not a list the maker typed out: the answer comes from the mounts this firearm exposes and the interface each part needs, so it stays right when either one changes.
- Every part that mounts on any firearm in the catalogue
- Interface standards, platforms and fit overrides
- The same answers through the API and the MCP server
Requires a signed-in GunSpec account on the Studio plan. The answer is computed per part, so it is not part of the public record.
Provenance
What the record holds
Every figure above was taken from one of these pages. The confidence reflects how much of the record came from a page a claim can be checked against.
In service
- Austro-Hungarian Army
- 1886
- Spanish Republican forces
- Spain
Provenance
Confidence in this record
78%
