Winchester Model 54
- Category
- Rifle
- Barrel
- 610 mm
- Weight, empty
- 3.52 kg
- Introduced
- 1925
About
What it is, and why it matters
The Winchester Model 54 is an American bolt-action rifle produced by the Winchester Repeating Arms Company from 1925 to 1936. Built around a Mauser 98-type action with a controlled-round feed and a five-round internal box magazine, it was Winchester's first commercially successful bolt-action sporting rifle and the gun for which the new .270 Winchester cartridge was introduced. Offered in numerous chamberings including the .30-06 Springfield, it directly influenced the later and more famous Winchester Model 70.
The Model 54 introduced the .270 Winchester cartridge, which became one of the most popular hunting rounds in North America. Its Mauser-derived action and accuracy made it the foundation for the Winchester Model 70, often called 'The Rifleman's Rifle.'
About 50,000 were produced across standard rifle, carbine, super grade, target and National Match configurations. A 'Speed Lock' improvement in 1933 reduced lock time. The Model 54 was superseded by the Winchester Model 70 in 1936.
Specification
Everything measured
IdentityWhat it is, who built it and when.
- Manufacturer
- Winchester Repeating Arms Company
- Category
- Rifle
- Country
- United States
- Status
- Discontinued
- Produced
- 1925 to 1936
DimensionsAs issued, without a magazine or an optic.
- Barrel
- 610 mm
- Overall length
- 1118 mm
- Weight, empty
- 3.52 kg
ActionHow it cycles, what trips it, and what feeds it.
- Action
- Bolt action
- Firing mechanism
- Hammer fired
- Trigger
- Two stage
- Capacity
- 5
- Magazine
- Fixed box
MaterialsEach swatch is the material itself, not a colour chosen to stand for it.
- Frame
- Steel
- Barrel
- Steel
- Stock
- Walnut
- Finish
- Blued
BallisticsFrom the service cartridge, not a handload.
- Muzzle velocity
- 880 m/s
- Muzzle energy
- 4515 J
- Effective range
- 500 m
Trajectory
What the round does downrange
Solved from the muzzle figures and the bullet. The dashed rule is the effective range on the record, and the crosses are the steps the solver returned.
No load solved for this record yetThe flight path is computed from a cartridge and a bullet. This record has no ammunition filed against its chambering, so there is nothing to solve.
Features
What it has
What the record lists as fitted, drawn from the catalogue.
Mauser 98 type action

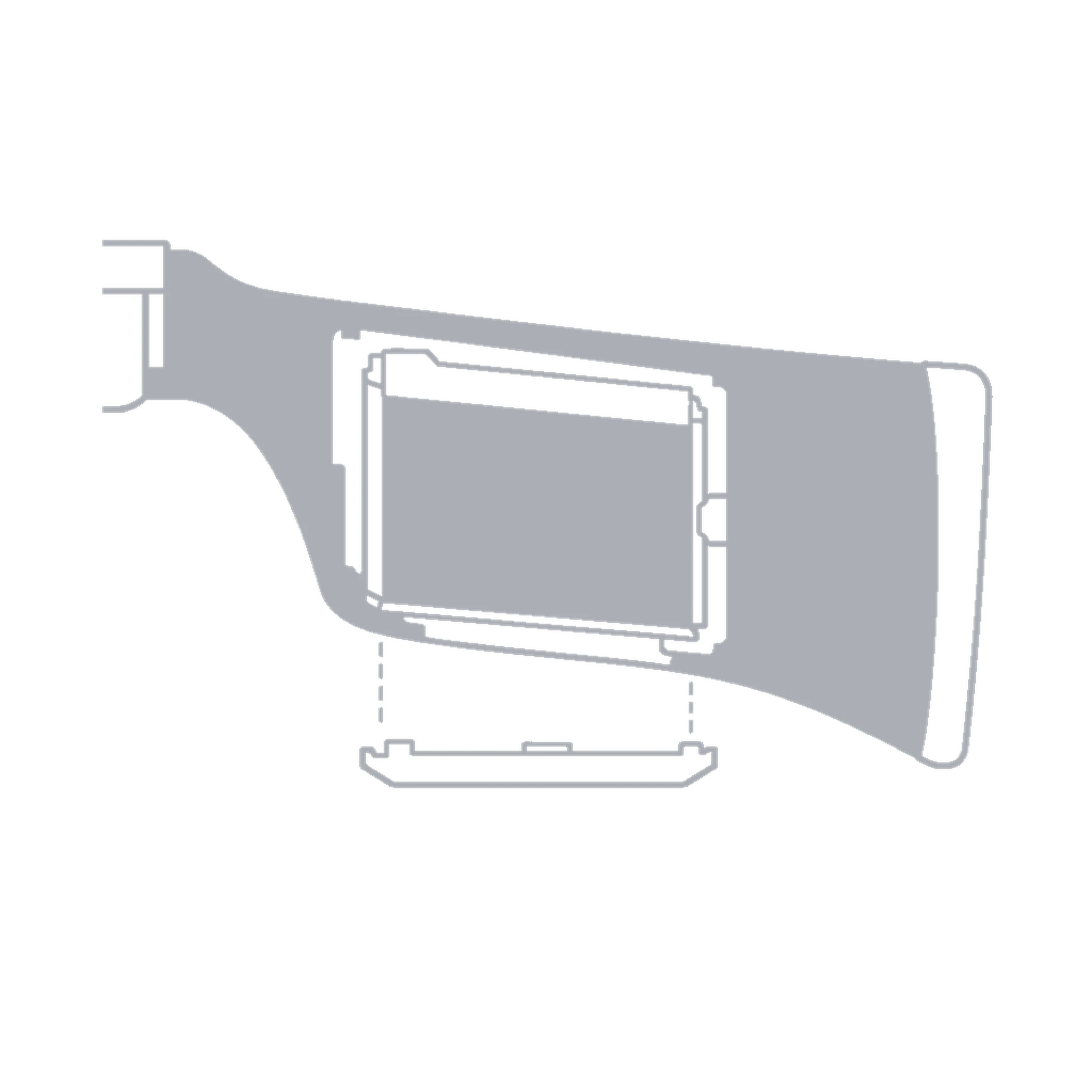

Internal box magazine
Two stage trigger
Speed lock
Standing
How it compares
Each figure against the firearms of the same type and cartridge that record it, or of the same type where that cartridge has too few. Positions are read to the nearest tenth.
| Measurement | This firearm | Median | Position |
|---|---|---|---|
| Empty weightAmong 75 .30-06 Springfield rifles | 3.52 kg | 3.40 kg | Heavier than about 80% |
| Overall lengthAmong 73 .30-06 Springfield rifles | 1118 mm | 1100 mm | Longer than about 70% |
| Barrel lengthAmong 75 .30-06 Springfield rifles | 610 mm | 584 mm | Longer than about 80% |
| Magazine capacityAmong 78 .30-06 Springfield rifles | 5 | 4 | Holds more rounds than about 80% |
Answers
Questions about the Winchester Model 54
How much does the Winchester Model 54 weigh?
The Winchester Model 54 weighs 3.52 kg (7.75 lb) empty.
What caliber is the Winchester Model 54?
The Winchester Model 54 is chambered in .30-06 Springfield.
How many rounds does the Winchester Model 54 hold?
The Winchester Model 54 holds 5 rounds, fed from a fixed box magazine.
How long is the Winchester Model 54?
The Winchester Model 54 is 1118 mm (44.0 in) long overall, with a 610 mm (24.0 in) barrel.
Who makes the Winchester Model 54?
The Winchester Model 54 is made by Winchester Repeating Arms Company (United States). It was designed by Frank Burton.
When was the Winchester Model 54 introduced?
The Winchester Model 54 was introduced in 1925 and discontinued in 1936.
How does the Winchester Model 54 operate?
The Winchester Model 54 uses a bolt action, and its firing mechanism is hammer fired.
